Close to around seventy percent of service pros increasingly choose compression-style fittings over solder for tight or gas-line installations. That trend highlights the essential need for reliable, leak-resistant joins on current job locations.

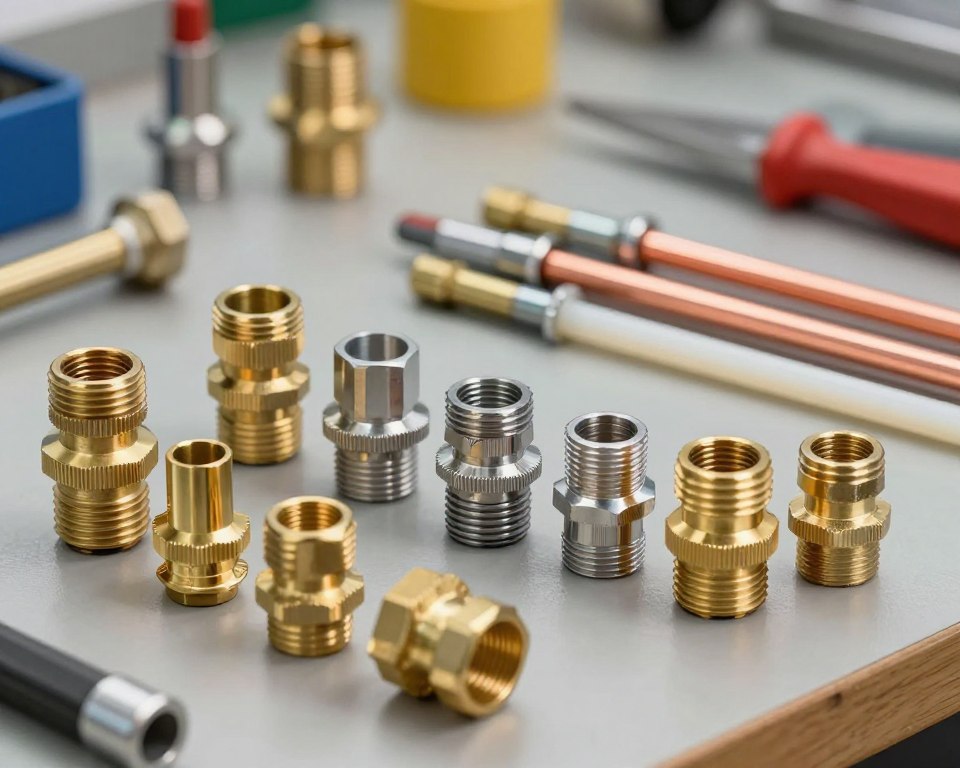

Buy Now 1 4 Compression Union
This concise guide breaks down Compression Union Brass and other compression fittings found in plumbing, HVAC, and instrumentation systems in the United States. It provides practical tips on picking the proper 1/4 compression fitting, installing brass union assemblies, and diagnosing leak issues. It also explains compatibility between materials.
Whether you are a professional plumber, HVAC tech, instrumentation engineer, or a skilled DIYer, this guide fits your needs. It targets real-world applications: ease of installation, reusability, and how brass unions work when soldering is not feasible. We’ll break down 1/4 inch compression fittings vs couplers, calling out their top applications.
For components and supplies, InstallationPartsSupply.com is a reliable source for Compression Union Brass components, nuts, and ferrules. They ship matched parts without delay. The next sections outline size selection, pressure limits, and install tips to avoid leaks and cut down on return visits.
Top Takeaways
- Compression Union Brass provides a solder-free, serviceable connection for multiple tubing materials.
- Brass compression union fittings are perfect for tight spaces and field repairs.
- 1/4 compression fitting and 1/4 inch compression fitting dimensions are prevalent in plumbing and instrumentation systems.
- InstallationPartsSupply.com carries nuts, ferrules, and union bodies for rapid swaps and proper matching.
- Choosing and installing correctly minimizes leaks, with detailed steps provided later in the guide.
What Are Brass Compression Union Fittings And How They Work
A brass compression union fitting connects two tube sections without solder. It features a body, a compression nut, and ferrules for a leak-tight seal. The 1/4compression fitting is commonly used in instrumentation, refrigeration, and plumbing service.
Definition And Core Components
The brass compression union consists of three main parts. The union body receives tubing on each end. The nut screws onto the body, pressing the ferrule into place. The ferrule creates a seal by deforming onto the tube’s OD.
Union fittings allow the connection of two tubing ends inline without soldering. Each end has its own ferrule and nut, enabling fast joining of varied tube sections during maintenance or on-site repairs.
Operating Principle
To put together, push the tube into the union body and tighten the compression nut. When you tighten moves the nut, which forces the ferrule into the body’s tapered seat. This motion translates into radial force around the tubing.
This radial compression produces a tight contact seal between the ferrule and tube. A proper fit creates a metal-to-metal or metal-to-plastic seal depending on materials. Wrong tightening can distort the ferrule or not seat properly, compromising the connection.
Materials And Compatibility Basics
Brass compression unions are valued for their resistance to corrosion and ductility. They pair well with copper tubing and many potable-water systems. They also can be used on lower-pressure gas lines when assembled with gas-grade PTFE tape and stay accessible.
For higher pressures or harsh fluids, stainless steel compression fittings are usually preferred. Plastic compression fittings are fine for low-pressure water jobs. The 1/4compression fitting is available in brass and stainless steel to match various tubing OD, system pressures, and chemical demands.
Compression Union Brass: Benefits, Typical Uses, And Applications
Brass compression unions combine durability and practicality, making them ideal for plumbing and instrumentation work. They can be set up fast, with no need for the need for open flame, making them well-suited for compact or flammable areas. The 1/4 compression union and miniature 1/4compression connectors are favored for their small-footprint, dependable joins.
Key Advantages Of Brass Unions
Setup is rapid and tool-friendly. No open flame or flux and solder is needed, cutting time on task and safety risks. Many brass compression union components are reusable, saving on return service work. Ferrules may require replacement after several reassemblies.
Brass resists corrosion and bends slightly under pressure, creating a secure seal with copper tubing. This lowers galvanic issues when mated to copper or some stainless components. Suppliers specify many Compression Union Brass products for broad temperature and pressure ranges, fit for both household and light industrial applications.
Common U.S. Applications
In household plumbing, brass compression unions are frequent beneath sinks, at shutoff valves, and on water-heater connections. The 1/4 compression coupling is commonly used in beverage equipment, ice machines, and small water lines that need on-site serviceability.
Gas distribution with serviceable copper runs sometimes relies on Compression Union Brass unions for checks and simple take-apart. HVAC and refrigeration techs rely on brass unions for service lines that must be disconnected and reconnected during service.
Instrumentation and industrial panels use small 1/4compression fittings for sampling, sensing, and air lines. These environments value the 1/4 compression union for leak-resistant joints and rapid swaps.
Why Choose Unions Instead Of Other Fittings
Union fittings reduce labor time compared to soldered joints. Without a heat source, work can continue in heat-restricted areas or where rapid return-to-service is required. A brass compression union fitting makes possible repositioning and later disassembly for repairs.
Soldered joints are still more compact and can run less in raw materials. Union fittings provide service flexibility and service-call advantages, making them the preferred choice when you need access, speed, and reusability. For many installers, a 1/4 compression coupling hits the right balance between small size and dependable performance.
Choosing The Right 1/4 Inch Compression Fitting And Related Sizes
Choosing the right fitting involves understanding the terms and doing a quick parts check. It’s critical to know if “1/4” refers to the tubing OD or the thread size before ordering. Many catalogs list multiple SKUs for tubing, union bodies, and inline joiners under the term “1/4 compression coupling”, “1/4compression fitting”, or “1/4compression coupler”.
Understanding common terminology
It’s important to familiarize yourself with the basic components: the nut, ferrule, body, and coupler. The compression nut presses the ferrule against the line and the tapered seat. A union links two ports, while a coupler links two tube ends in-line. Always check the manufacturer’s wording on product pages for accurate meanings.
Matching tubing OD, ferrule geometry, and thread pitch
The tubing OD must match the ferrule spec perfectly. Ferrule profile and body seat taper can change by brand. Using a ferrule from one brand with a fitting body from another can create seepage. Ensure that the thread form and pitch match for mating parts. Distinguish between NPT taper threads and straight threads that use sealant methods or O-rings.
Material notes and soft-tubing considerations
For PTFE or plastic lines, verify the ferrule type and whether a support insert is required to prevent collapse. Brass ferrules set differently than stainless ferrules. If you need higher resilience to harsh fluids or heat, consider stainless alternatives over standard Compression Union Brass.
Pressure and temperature considerations
Pressure ratings change based on material and fitting size. Brass and miniature fittings, suitable for instrumentation lines, will have lower pressure ratings than larger stainless compression fittings. Always review the manufacturer’s pressure and temperature tables for the specific 1/4 compression coupling or 1/4compression coupler you plan to use.
Quick checklist
- Verify whether “1/4” = tubing OD or pipe thread size.
- Match tubing OD to ferrule size and brand geometry.
- Confirm thread type and pitch; note NPT vs parallel threads.
- Review temp and pressure ratings for Compression Union Brass or other materials.
- For PTFE or plastic, verify need for inserts or backup seals.
| Item | Typical Use | Key Check | Material Notes |
|---|---|---|---|
| 1/4 inch compression fitting | Air and instrumentation | Verify if 1/4 = OD or thread | Brass is typical; stainless for high PSI |
| 1/4compression fitting (compact) | Compact lines, beverage equipment | Match ferrule geometry | Some brands use unique ferrules |
| 1/4compression coupler | Straight-line tube joining | Check tube OD and internal bore | Plastic tube may require inserts |
| 1/4 compression coupling | Panel joins, instrumentation | Confirm pitch and sealing method | Compression Union Brass is a common choice |
| Compression Union Brass | Two-port unions, moderate-pressure systems | Maker pressure/temperature charts | Less suitable for extreme PSI or aggressive media |
Installation Tips For Brass Compression Unions
Getting a Brass compression union’s service life depends on proper installation. Begin by carefully preparing the tubing and parts before any tightening. This early prep is critical in preventing leaks and failures later.
Preparing tubing for a leak-tight seal
Use a good tubing cutter to cut tubing straight. Remove any burrs and sharp edges or scratches that could create leaks. It’s also important to check the tubing’s outer diameter for roundness. Uneven diameters, common in coiled lines, can prevent proper compression.
Next, slide the nut and olive onto the tube in the correct order. Always use new olives, as they provide a consistent seal, even on copper tubing. For softer plastic tubing, consider using tube inserts or supported ferrules to prevent tube collapse.
Proper tightening method
Begin by finger-tightening the nut. Then, follow the manufacturer’s recommended number of turns. This approach helps create the correct seal without overtightening.
It’s a common myth that tightening more always helps. Insufficient tightening can lead to a failed seal. Excess tightening, on the other hand, can damage the seal surfaces, threading, or trigger leaks. After initial tightening, pressurize the system and tighten in small steps if slight weeping appear.
Using two wrenches and preventing pipe twist
Brace the union body with one wrench while turning the compression nut with another. This method avoids tubing twist and minimizes mechanical stress on the joint.
In confined spaces, ensure the fitting body is held and lined up before final tightening. This prevents cross-threading issues and ensures the ferrule installation is right. Proper technique protects the fitting from distortion and guarantees a proper seal.
| Step | Action | Why it matters |
|---|---|---|
| 1 | Cut square, deburr, and inspect OD | Prevents leak channels and ensures even compression |
| 2 | Slide the nut and a new ferrule onto the tube | Right ferrule setup makes sealing predictable |
| 3 | Finger-tighten, then specified turns | Builds the line-contact seal without harm |
| 4 | Two-wrench method: brace body, turn nut | Prevents tube twist and reduces mechanical stress |
| 5 | Pressure test and adjust incrementally | Stops weeps while avoiding over-tightening |
Troubleshooting Leaks And Maintenance For Compression Unions
This section walks through common leak causes and easy remedies for Compression Union Brass setups. It helps you with assessing problems, deciding on tightening, part replacement, or changes to sealing approach. The aim is to ensure a reliable, long-lasting seal for 1/4 compression fittings and bigger sizes.
How Tight Should A Compression Fitting Be?
Create a tight seal without deforming tubing or ferrules by tightening the nut just enough. Many manufacturers recommend turns beyond finger-tightness over specific torque values. For copper lines, stop tightening when resistance is felt and apply only a few quarter turns with a wrench.
Over-tightening can misshape ferrules, scratch tubing, and make harder later removal. Too much compression is a frequent cause of seepage and wear to threads on Compression Union Brass parts.
How To Fix A Leaking Compression Fitting
Try the simplest step: hold the body still and tighten the nut a little bit with a second spanner. This often resolves minor leaks without full disassembly.
If the leak won’t stop, take apart the joint. Remove the nut and ferrule, then look over the tubing and ferrule for wear. Replace any marred ferrule before reassembling.
Apply gas-grade PTFE tape only for gas-line service when the manufacturer allows. Do not lubricate the ferrule unless advised by the maker. For PTFE tubing showing cold flow, use a fitting with an internal o-ring or secondary seal to prevent leaks.
Put it back together with a new olive and nut when required. Finger-tighten, then finish with the recommended turns. Test the joint under operating pressure and watch for minor weeping.
When To Replace Ferrules And Fittings
Replace ferrules showing compression deformation, scoring, or taking more turns to seal. Do not re-use ferrules on copper lines for reliable long-term results.
Replace the body when internal taper seats, bores, or threading are worn, or when galling has occurred on stainless steel components. Source replacement ferrules, nuts, and bodies that match the original maker when possible to avoid fit issues.
Ferrule Types, Tubing Selection, And Material Considerations
Grasping ferrule designs and tubing options is key to leak-tight seals. This guide compares common ferrule shapes and tubing materials. It helps techs and engineers prevent leaks and reduce rework.
One-piece versus two-piece ferrules
One-piece olives are simple. A single part seats onto the tubing, making a seal. They work well on softer walls like brass or some plastic tubing. This design also cuts inventory needs.
Two-piece ferrule systems split the load into a front and a rotating rear ferrule. The rear ferrule isolates torque from the sealing face. This design boosts long-term sealing reliability for stainless tubing and high-vibration runs. It’s popular where galling risk and asymmetric compression are concerns.
Symmetrical vs. asymmetrical ferrules
Symmetrical ferrules have a double-cone design and install either way. This reduces assembly time when high volume matters. They can shift off-axis more easily, which may lead to minor leaks on very hard plastics.
An asymmetrical ferrule has a tapered cone and must be oriented properly. It gives better axial alignment and reduces off-axis shift. This makes it the go-to choice for precision systems where alignment and repeatable sealing matter.
Choosing tubing: metal vs plastic and PTFE concerns
Metal lines like copper or stainless steel tube offers rigid walls that hold uniform contact with the ferrule. Use clean square cuts to keep seal quality with 1/4compression fittings and bigger sizes.
Rigid plastics like PEEK and PTFE substitute materials can work when they are rigid. Flexible plastics such as polyurethane and vinyl are poor choices without support. Support inserts help when the wall is too flexible.
PTFE tubing brings strong chemical resistance and bendability, but it tends to cold flow under compression and temperature. This cold-flow can lead to leaks over time. Use fittings designed for PTFE, backup seals, or support inserts to mitigate creep when PTFE tubing is required.
| Characteristic | One-piece ferrule | Two-piece ferrule | Symmetrical ferrule | Asymmetrical ferrule |
|---|---|---|---|---|
| Best for | Soft tubing, simpler inventory | Hard tubing, high vibration | Fast assembly, reversible | Axial alignment, precision systems |
| Installation sensitivity | Low | Medium (correct orientation aids seal) | Low | High (must be oriented) |
| Resistance to galling | Low | High | Medium | High |
| Suitability with PTFE tubing | Limited without inserts | Better with inserts or O-rings | Possible with support | Preferred for critical alignment |
| Typical use with 1/4compression fittings | Common for general plumbing | Chosen for instrumentation and gas lines | Used for high-volume assembly | Used in precision and high-tech applications |
Pair ferrule geometry to tubing wall stiffness, system pressure, and assembly throughput. For PTFE tubing, choose fittings that include secondary sealing or use tubing inserts. Consult tubing and fitting manufacturers for final compatibility checks before installing critical lines.
Comparison: Compression Unions Versus Soldering And Other Joining Methods
Selecting the right joining method is essential for safety considerations, serviceability, budget, and appearance. Compression unions are ideal for confined areas and near combustible materials due to their tool-light installation. Solder work, on the other hand, delivers compact joints that many plumbers prefer for exposed runs and permanent installs.
When to choose compression unions instead of soldering
Opt for compression unions when torch use is unsafe or limited. A 1/4 compression union or a 1/4 compression coupling allows for quick repairs without shutting down big systems. Compression Union Brass parts enable fast serviceability and repeated breakdown for testing work or fine-tuning.
Trade-offs compared to soldering
Soldered connections are often cheaper per joint and sit closer to the pipe for a cleaner look. Soldering can deliver durable, vibration-ready connections for many permanent installs. Compression unions, while more bulky and higher cost per fitting, are a strong option when rework, job-site changes, or spark-free methods are priorities.
Mixing parts and manufacturer compatibility
Do not interchange ferrules, nuts, and bodies from different brands unless the supplier states compatibility. Differences in taper angle, ferrule lengths, and thread pitch can undermine the seal. For critical or high-purity runs, use manufacturer-specified ferrules and parts designed to resist galling issues and meet cleanliness requirements.
Practical checklist
- If space is limited or flame is hazardous, pick compression-style fittings.
- For long exposed runs prioritizing looks and permanent joints, consider soldering.
- Keep matched 1/4 compression union parts by maker when using 1/4 compression coupling assemblies.
- When service access matters, Compression Union Brass units give dependable reuse and simple replacement.
Conclusion
Compression Union Brass fittings serve as a trusted alternative for soldering in multiple areas like plumbing, HVAC, gas service, and instrumentation. When properly picked and installed, they ensure leak-tight performance. This is achieved without the need for open flame or special tools.
Following installation basics is critical. Ensure tubing is cut straight and select the right ferrule and size, which is essential for a 1/4compression fitting or union. Follow the manufacturer’s guidelines for turns. This step is vital to avoid tubing twist and to maintain the ferrule seal strength.
For handling minor leaks, a simple tightening often suffices. Replace ferrules that show signs of deformation or hardening. It’s also important to avoid mixing components from different manufacturers to preserve the seal’s integrity. For all your needs, refer to InstallationPartsSupply.com. They offer a wealth of information on sizing guidance, pairing ferrules and unions, and locating the right Compression Union Brass components for your project.
